Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

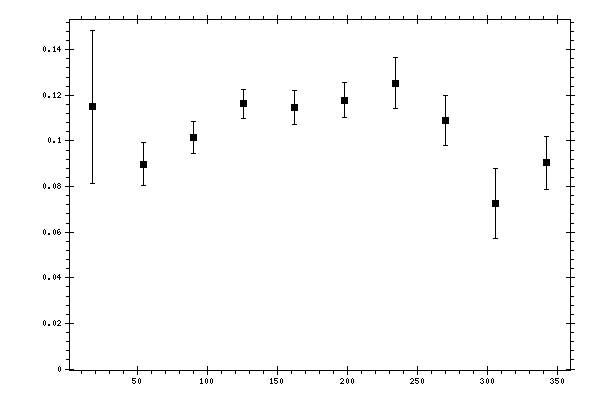

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.114898 | 0.0335408 | 0.03772325 |
| 54 | 0.0897648 | 0.0094034 | 0.01121519 |
| 90 | 0.101491 | 0.0070603 | 0.00946052 |
| 126 | 0.116179 | 0.00646712 | 0.00882776 |
| 162 | 0.114546 | 0.00738168 | 0.00953572 |
| 198 | 0.117862 | 0.00769695 | 0.00902353 |
| 234 | 0.125255 | 0.0111475 | 0.0114292 |
| 270 | 0.108951 | 0.0108055 | 0.00959792 |
| 306 | 0.0726345 | 0.0152893 | 0.00821691 |
| 342 | 0.0903502 | 0.0115386 | 0.01841685 |
