Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

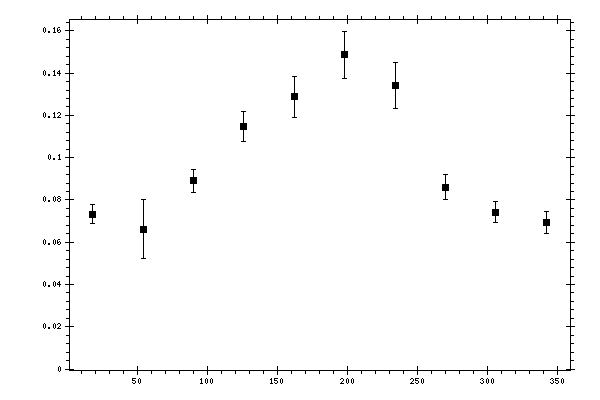

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0732727 | 0.00446809 | 0.00837595 |
| 54 | 0.0661161 | 0.0139886 | 0.00785716 |
| 90 | 0.0890991 | 0.0054649 | 0.00851188 |
| 126 | 0.114633 | 0.00707324 | 0.01077506 |
| 162 | 0.128778 | 0.00972566 | 0.01251642 |
| 198 | 0.148605 | 0.0111411 | 0.01471831 |
| 234 | 0.134066 | 0.0109926 | 0.01278207 |
| 270 | 0.0860675 | 0.00579316 | 0.00810979 |
| 306 | 0.0741782 | 0.00493071 | 0.00795892 |
| 342 | 0.069417 | 0.00519424 | 0.00767195 |
