Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

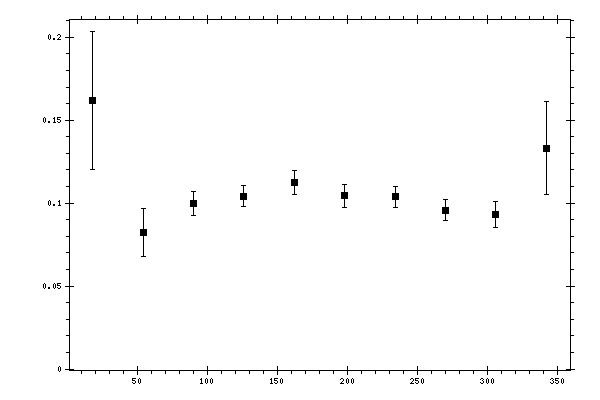

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.161855 | 0.0417579 | 0.02091437 |
| 54 | 0.0823811 | 0.0145227 | 0.01345292 |
| 90 | 0.0996971 | 0.00744984 | 0.00776154 |
| 126 | 0.104222 | 0.00628512 | 0.00807206 |
| 162 | 0.112202 | 0.00722524 | 0.00875389 |
| 198 | 0.104304 | 0.00706286 | 0.00852144 |
| 234 | 0.103833 | 0.0063281 | 0.00849124 |
| 270 | 0.0956766 | 0.00633081 | 0.00765901 |
| 306 | 0.0929992 | 0.00794116 | 0.00908405 |
| 342 | 0.13318 | 0.0281988 | 0.0238274 |
