Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

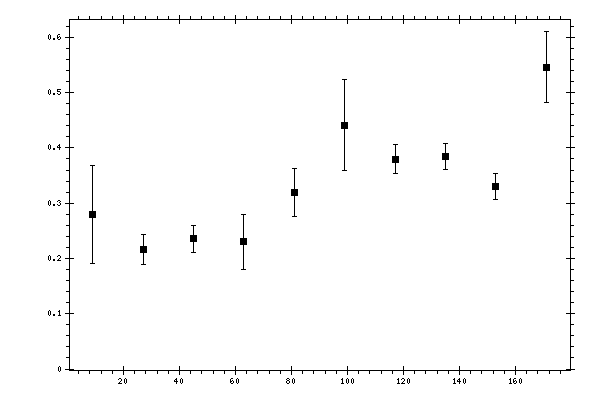

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.279539 | 0.0878891 | 0.06590058 |
| 27 | 0.216544 | 0.0276911 | 0.0350555 |
| 45 | 0.23585 | 0.0245183 | 0.03064028 |
| 63 | 0.230281 | 0.0495698 | 0.02950909 |
| 81 | 0.318873 | 0.0431641 | 0.03251858 |
| 99 | 0.44098 | 0.0823601 | 0.03671465 |
| 117 | 0.379291 | 0.026176 | 0.03013419 |
| 135 | 0.385088 | 0.0237308 | 0.0322863 |
| 153 | 0.330742 | 0.0232574 | 0.02792245 |
| 171 | 0.546127 | 0.0638506 | 0.05698539 |
