Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

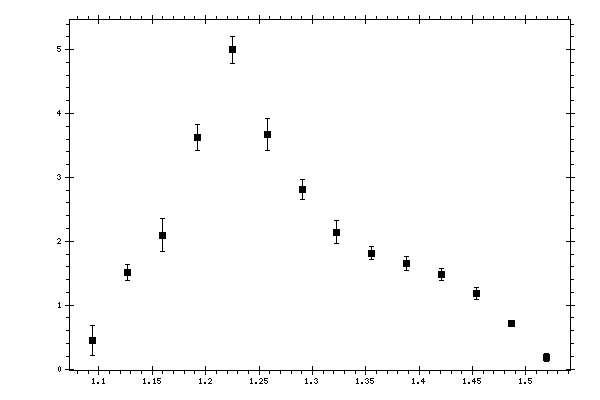

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09418 | 0.442346 | 0.237273 | 0.10691397 |
| 1.12687 | 1.51165 | 0.128352 | 0.19033464 |
| 1.15955 | 2.09455 | 0.262328 | 0.24063271 |
| 1.19224 | 3.62697 | 0.199351 | 0.34107628 |
| 1.22492 | 4.99918 | 0.211063 | 0.40632408 |
| 1.25761 | 3.6747 | 0.246179 | 0.30793795 |
| 1.29029 | 2.80833 | 0.156549 | 0.26464004 |
| 1.32298 | 2.13982 | 0.179343 | 0.20293993 |
| 1.35566 | 1.81437 | 0.101396 | 0.14975419 |
| 1.38835 | 1.64751 | 0.106407 | 0.1361727 |
| 1.42103 | 1.4771 | 0.0893031 | 0.11271157 |
| 1.45372 | 1.18135 | 0.0998579 | 0.09051765 |
| 1.4864 | 0.707371 | 0.030293 | 0.05360512 |
| 1.51909 | 0.183422 | 0.0594895 | 0.01528179 |
