Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

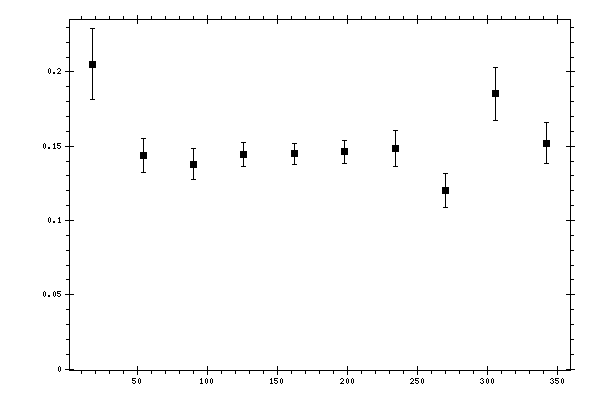

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.205286 | 0.0236218 | 0.02607173 |
| 54 | 0.143628 | 0.0112138 | 0.01251461 |
| 90 | 0.137803 | 0.0104227 | 0.01146045 |
| 126 | 0.144251 | 0.00817404 | 0.01086759 |
| 162 | 0.144811 | 0.00714072 | 0.01169823 |
| 198 | 0.146083 | 0.00805272 | 0.0130553 |
| 234 | 0.148492 | 0.0120342 | 0.01383247 |
| 270 | 0.120218 | 0.011365 | 0.00971441 |
| 306 | 0.185319 | 0.0179272 | 0.01757898 |
| 342 | 0.151937 | 0.0138899 | 0.02158848 |
