Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

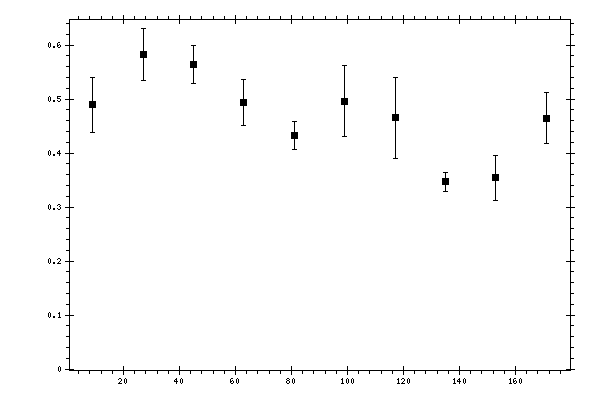

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.489056 | 0.0502148 | 0.07188216 |
| 27 | 0.58212 | 0.0483484 | 0.05940057 |
| 45 | 0.563909 | 0.0352514 | 0.04991784 |
| 63 | 0.494203 | 0.042442 | 0.04367972 |
| 81 | 0.432061 | 0.0258443 | 0.03613268 |
| 99 | 0.496185 | 0.0655783 | 0.05070528 |
| 117 | 0.465 | 0.0747484 | 0.06808417 |
| 135 | 0.34658 | 0.0181708 | 0.03031573 |
| 153 | 0.354402 | 0.0416672 | 0.03485991 |
| 171 | 0.464522 | 0.0477315 | 0.05252547 |
