Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

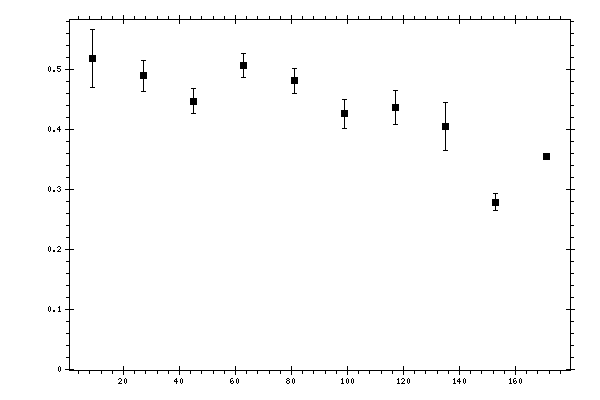

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.518423 | 0.048967 | 0.04480903 |
| 27 | 0.489522 | 0.0255741 | 0.03805417 |
| 45 | 0.447197 | 0.0201962 | 0.03497755 |
| 63 | 0.506683 | 0.0195663 | 0.04014071 |
| 81 | 0.481006 | 0.0213443 | 0.03697306 |
| 99 | 0.425701 | 0.0239634 | 0.03356855 |
| 117 | 0.436357 | 0.0279924 | 0.04258227 |
| 135 | 0.404944 | 0.0397445 | 0.06234855 |
| 153 | 0.2785 | 0.014553 | 0.1128044 |
| 171 | 0.355089 | 0.00043514 | 0.18943855 |
