Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

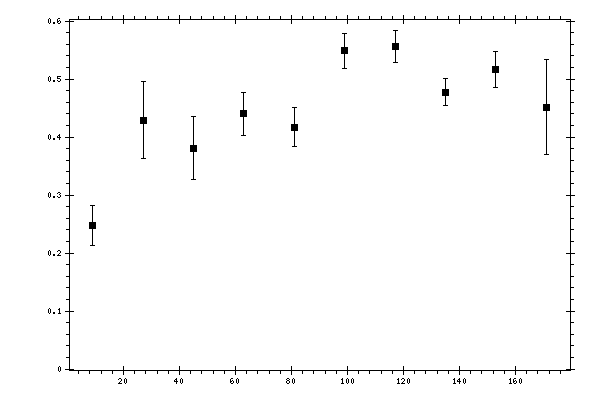

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.24756 | 0.0338081 | 0.05039682 |
| 27 | 0.428931 | 0.0662524 | 0.06235903 |
| 45 | 0.381139 | 0.0535885 | 0.04280819 |
| 63 | 0.440004 | 0.0375531 | 0.04879094 |
| 81 | 0.416796 | 0.033798 | 0.03527039 |
| 99 | 0.548999 | 0.0300067 | 0.04616457 |
| 117 | 0.55605 | 0.0273768 | 0.04643418 |
| 135 | 0.47766 | 0.0234575 | 0.03847732 |
| 153 | 0.51623 | 0.0312144 | 0.04266278 |
| 171 | 0.451756 | 0.0813486 | 0.11252221 |
