Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

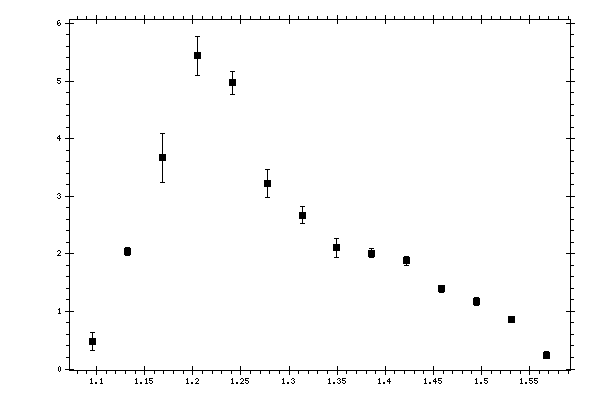

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 0.47761 | 0.154779 | 0.14935085 |
| 1.13223 | 2.04206 | 0.0748541 | 0.24643598 |
| 1.16848 | 3.6648 | 0.419617 | 0.37528422 |
| 1.20474 | 5.43478 | 0.344578 | 0.49392441 |
| 1.241 | 4.97029 | 0.196234 | 0.47170937 |
| 1.27725 | 3.21508 | 0.243989 | 0.31632999 |
| 1.31351 | 2.66992 | 0.148683 | 0.21407789 |
| 1.34976 | 2.10615 | 0.167404 | 0.16994587 |
| 1.38602 | 2.00781 | 0.0765673 | 0.15586624 |
| 1.42228 | 1.87531 | 0.0792262 | 0.14568674 |
| 1.45853 | 1.39106 | 0.061835 | 0.10605712 |
| 1.49479 | 1.17088 | 0.0673986 | 0.08959504 |
| 1.53105 | 0.852907 | 0.0303738 | 0.06415499 |
| 1.5673 | 0.239836 | 0.0572787 | 0.0191598 |
