Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

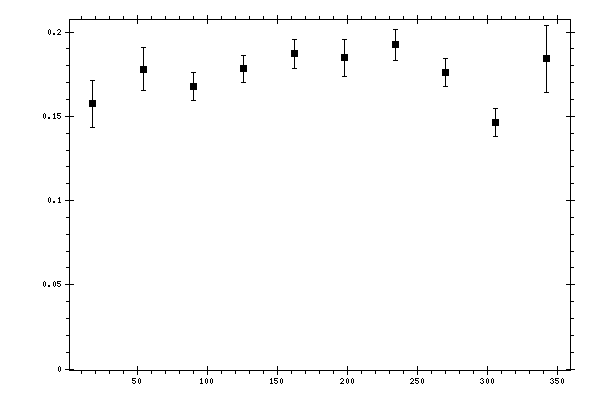

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.157356 | 0.0140658 | 0.02487495 |
| 54 | 0.177979 | 0.0128002 | 0.02173597 |
| 90 | 0.167751 | 0.00814021 | 0.01284135 |
| 126 | 0.178218 | 0.00798172 | 0.01411449 |
| 162 | 0.187234 | 0.00867272 | 0.01493124 |
| 198 | 0.184704 | 0.0108164 | 0.01494416 |
| 234 | 0.192532 | 0.0093127 | 0.01489738 |
| 270 | 0.175772 | 0.00829449 | 0.01400866 |
| 306 | 0.146214 | 0.00848144 | 0.01649375 |
| 342 | 0.184136 | 0.0197485 | 0.02569309 |
