Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

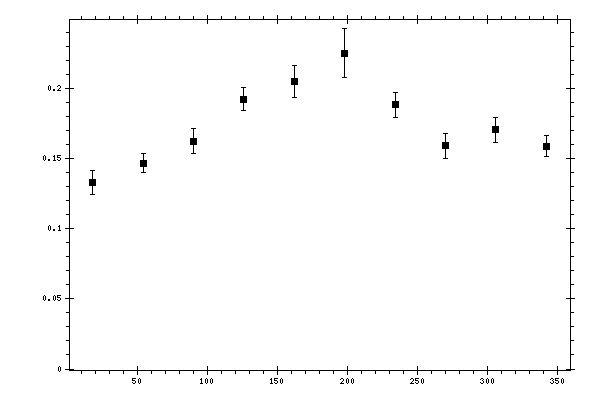

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.132648 | 0.0085499 | 0.0137031 |
| 54 | 0.146781 | 0.00699766 | 0.01435581 |
| 90 | 0.162471 | 0.00869833 | 0.01478611 |
| 126 | 0.192231 | 0.00812992 | 0.02901145 |
| 162 | 0.204641 | 0.0113641 | 0.0195555 |
| 198 | 0.225211 | 0.0176302 | 0.02146748 |
| 234 | 0.188399 | 0.00884403 | 0.01801613 |
| 270 | 0.159128 | 0.008947 | 0.0153997 |
| 306 | 0.170407 | 0.00874344 | 0.01533838 |
| 342 | 0.158741 | 0.00753565 | 0.01552271 |
