Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

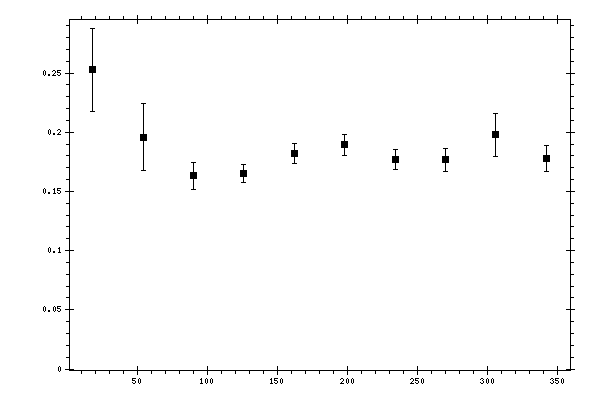

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.252724 | 0.0352637 | 0.04065112 |
| 54 | 0.195743 | 0.0284039 | 0.02040019 |
| 90 | 0.163229 | 0.0115867 | 0.01431596 |
| 126 | 0.165132 | 0.00793538 | 0.01297076 |
| 162 | 0.182094 | 0.00820803 | 0.01433086 |
| 198 | 0.189234 | 0.00851907 | 0.01490873 |
| 234 | 0.176758 | 0.0084604 | 0.01389449 |
| 270 | 0.176667 | 0.00954918 | 0.01503307 |
| 306 | 0.197741 | 0.018101 | 0.0192221 |
| 342 | 0.177846 | 0.0112802 | 0.02501616 |
