Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

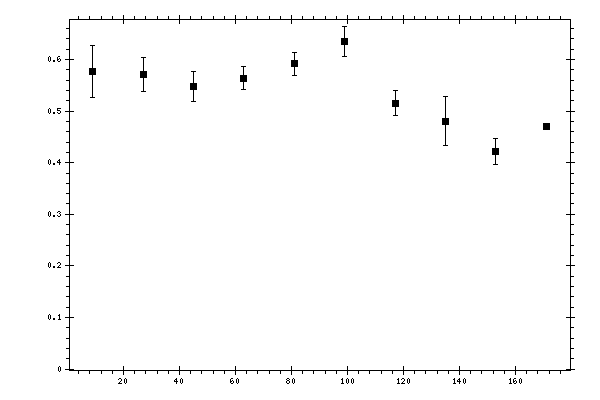

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.576473 | 0.0503946 | 0.04806911 |
| 27 | 0.571063 | 0.0334777 | 0.04367477 |
| 45 | 0.547139 | 0.028873 | 0.04331466 |
| 63 | 0.563722 | 0.0225649 | 0.0459883 |
| 81 | 0.591935 | 0.0219873 | 0.04472826 |
| 99 | 0.635206 | 0.0283173 | 0.04875209 |
| 117 | 0.515027 | 0.0243077 | 0.07395725 |
| 135 | 0.480835 | 0.0475736 | 0.08311936 |
| 153 | 0.422701 | 0.0251795 | 0.15269583 |
| 171 | 0.470667 | 0.00055926 | 0.24736368 |
