Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

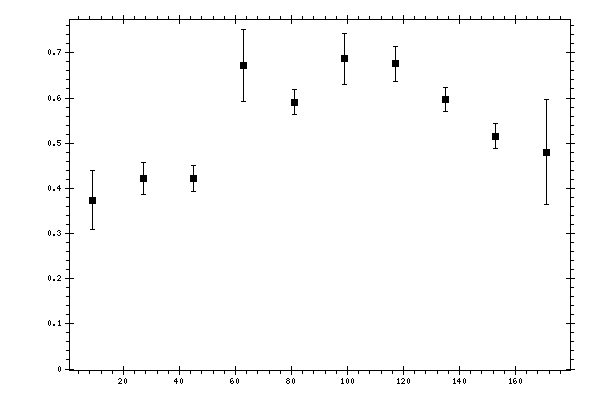

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.373597 | 0.0656939 | 0.06489556 |
| 27 | 0.421844 | 0.0344908 | 0.05290484 |
| 45 | 0.421881 | 0.0282341 | 0.04871797 |
| 63 | 0.671192 | 0.0793924 | 0.08404219 |
| 81 | 0.591144 | 0.0283482 | 0.05367351 |
| 99 | 0.686422 | 0.0574314 | 0.05693834 |
| 117 | 0.675599 | 0.0380768 | 0.05675082 |
| 135 | 0.596318 | 0.0268543 | 0.05038138 |
| 153 | 0.515843 | 0.028374 | 0.04407156 |
| 171 | 0.480067 | 0.116275 | 0.0664907 |
