Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

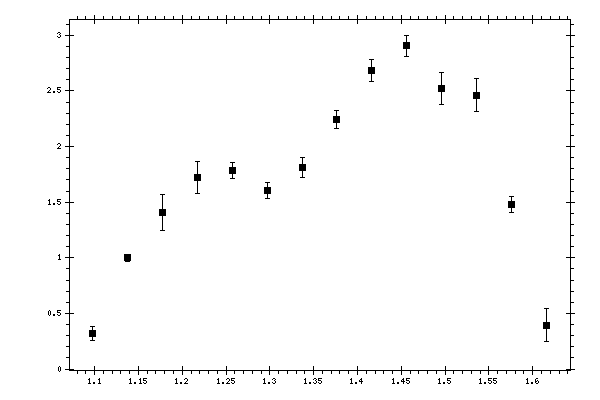

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.321085 | 0.061039 | 0.02686541 |
| 1.13758 | 0.998409 | 0.0346149 | 0.08192765 |
| 1.17741 | 1.40807 | 0.158609 | 0.12441461 |
| 1.21724 | 1.72454 | 0.143319 | 0.15204114 |
| 1.25707 | 1.78506 | 0.0710307 | 0.14595713 |
| 1.29689 | 1.60463 | 0.0749178 | 0.13168339 |
| 1.33672 | 1.8118 | 0.0896297 | 0.14025428 |
| 1.37655 | 2.24384 | 0.0805399 | 0.17032451 |
| 1.41638 | 2.68406 | 0.0992011 | 0.2231074 |
| 1.45621 | 2.90456 | 0.0953613 | 0.23823972 |
| 1.49603 | 2.52045 | 0.14643 | 0.25472617 |
| 1.53586 | 2.46228 | 0.148149 | 0.25065486 |
| 1.57569 | 1.47884 | 0.0761928 | 0.19802307 |
| 1.61552 | 0.394632 | 0.147496 | 0.13373164 |
