Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

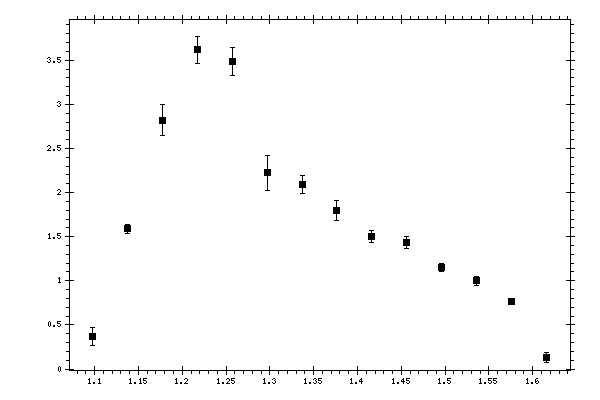

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.368274 | 0.106167 | 0.11740568 |
| 1.13758 | 1.58816 | 0.0511242 | 0.17325782 |
| 1.17741 | 2.81966 | 0.174449 | 0.29451356 |
| 1.21724 | 3.6177 | 0.154011 | 0.35320642 |
| 1.25707 | 3.49047 | 0.158424 | 0.27268688 |
| 1.29689 | 2.22567 | 0.198396 | 0.18042487 |
| 1.33672 | 2.0896 | 0.104169 | 0.19459867 |
| 1.37655 | 1.79324 | 0.112447 | 0.16719524 |
| 1.41638 | 1.49798 | 0.0668315 | 0.13014511 |
| 1.45621 | 1.43333 | 0.0683221 | 0.12454325 |
| 1.49603 | 1.14748 | 0.0446095 | 0.08469544 |
| 1.53586 | 0.998767 | 0.0478153 | 0.07379461 |
| 1.57569 | 0.762228 | 0.0233664 | 0.0629834 |
| 1.61552 | 0.130637 | 0.0564419 | 0.01133121 |
