Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

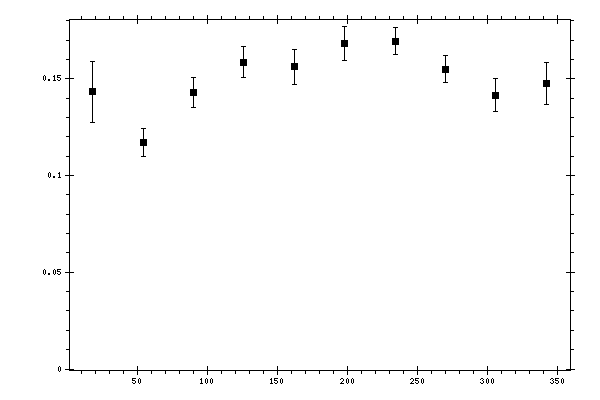

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.143388 | 0.0158507 | 0.02269617 |
| 54 | 0.117299 | 0.00729371 | 0.01180479 |
| 90 | 0.14283 | 0.00772558 | 0.01144238 |
| 126 | 0.158624 | 0.00805492 | 0.01252962 |
| 162 | 0.15637 | 0.00907264 | 0.01233351 |
| 198 | 0.168317 | 0.00883543 | 0.01284806 |
| 234 | 0.169626 | 0.00685425 | 0.01267692 |
| 270 | 0.155097 | 0.0069627 | 0.01153026 |
| 306 | 0.141482 | 0.00855175 | 0.01374842 |
| 342 | 0.147697 | 0.0110384 | 0.02032499 |
