Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

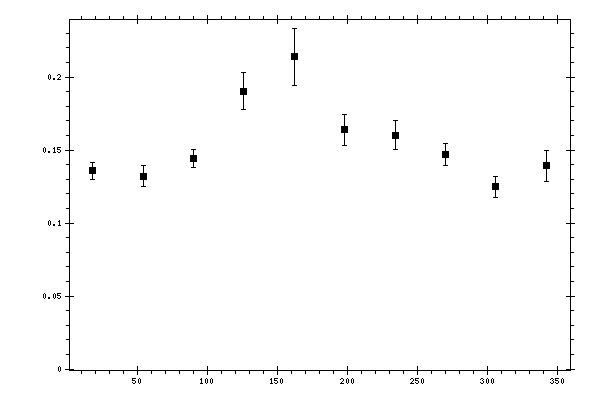

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.135782 | 0.0058564 | 0.0132808 |
| 54 | 0.131918 | 0.00720982 | 0.01222764 |
| 90 | 0.144009 | 0.00611879 | 0.01246014 |
| 126 | 0.190206 | 0.0126614 | 0.01846243 |
| 162 | 0.213742 | 0.0195292 | 0.0230427 |
| 198 | 0.163791 | 0.0107688 | 0.01462067 |
| 234 | 0.160267 | 0.00991854 | 0.01417443 |
| 270 | 0.146966 | 0.00769492 | 0.01459822 |
| 306 | 0.124724 | 0.00732045 | 0.01163978 |
| 342 | 0.139284 | 0.0106359 | 0.013252 |
