Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

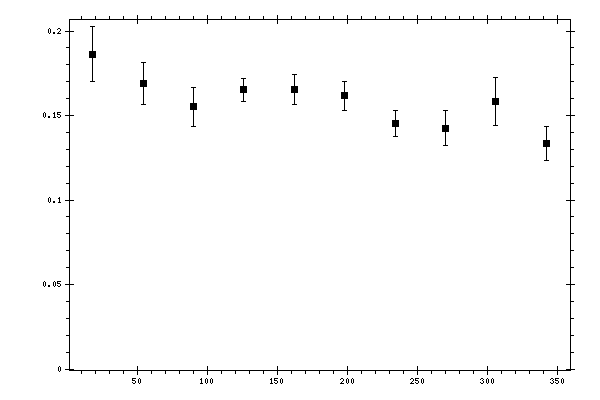

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.186248 | 0.0163235 | 0.02046548 |
| 54 | 0.168734 | 0.0123735 | 0.01455838 |
| 90 | 0.155067 | 0.0116727 | 0.01267351 |
| 126 | 0.165123 | 0.00699124 | 0.01288682 |
| 162 | 0.165412 | 0.00864106 | 0.0127877 |
| 198 | 0.161651 | 0.00872714 | 0.01230951 |
| 234 | 0.145359 | 0.00762716 | 0.01122245 |
| 270 | 0.14259 | 0.0103537 | 0.0134078 |
| 306 | 0.15815 | 0.0141481 | 0.01833945 |
| 342 | 0.133535 | 0.00989392 | 0.02024263 |
