Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

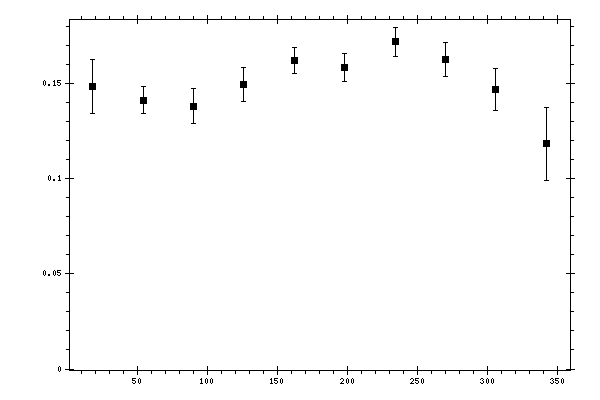

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.148415 | 0.0143879 | 0.02065357 |
| 54 | 0.141195 | 0.00719247 | 0.01355794 |
| 90 | 0.138081 | 0.00919346 | 0.0121409 |
| 126 | 0.149646 | 0.00897676 | 0.01211764 |
| 162 | 0.162129 | 0.0070115 | 0.01211076 |
| 198 | 0.158471 | 0.00717359 | 0.01244555 |
| 234 | 0.171826 | 0.00753321 | 0.01442651 |
| 270 | 0.162582 | 0.00887033 | 0.01281693 |
| 306 | 0.14699 | 0.011144 | 0.01409104 |
| 342 | 0.1183 | 0.0192585 | 0.01650034 |
