Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

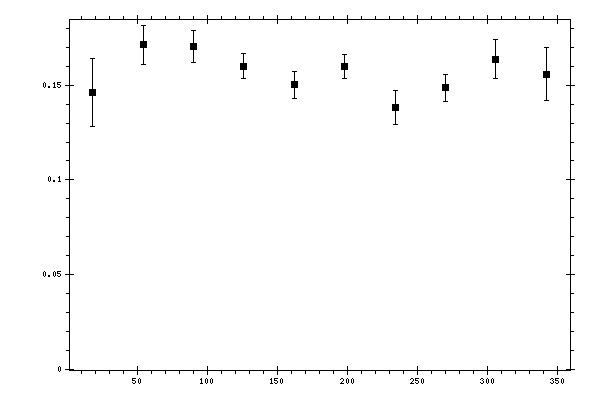

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.146145 | 0.0178954 | 0.02423608 |
| 54 | 0.171422 | 0.0104516 | 0.01583538 |
| 90 | 0.170551 | 0.00832011 | 0.01340623 |
| 126 | 0.160212 | 0.00662468 | 0.01254961 |
| 162 | 0.150338 | 0.00721542 | 0.01243903 |
| 198 | 0.159781 | 0.00629718 | 0.01242104 |
| 234 | 0.138313 | 0.00877366 | 0.01102128 |
| 270 | 0.148762 | 0.0071273 | 0.01117158 |
| 306 | 0.163806 | 0.0103612 | 0.01396123 |
| 342 | 0.155895 | 0.0140327 | 0.02029024 |
