Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

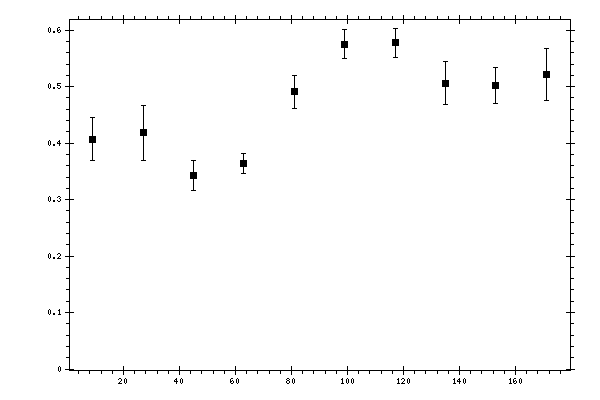

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.406905 | 0.0377926 | 0.05470108 |
| 27 | 0.418465 | 0.0487909 | 0.05659828 |
| 45 | 0.343005 | 0.0266575 | 0.03345471 |
| 63 | 0.363891 | 0.0177398 | 0.03704268 |
| 81 | 0.491136 | 0.0293612 | 0.04474112 |
| 99 | 0.575442 | 0.0260194 | 0.04823292 |
| 117 | 0.577811 | 0.0258844 | 0.05754835 |
| 135 | 0.506344 | 0.038251 | 0.04401209 |
| 153 | 0.501889 | 0.0312015 | 0.03901593 |
| 171 | 0.521961 | 0.0458454 | 0.05140902 |
