Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

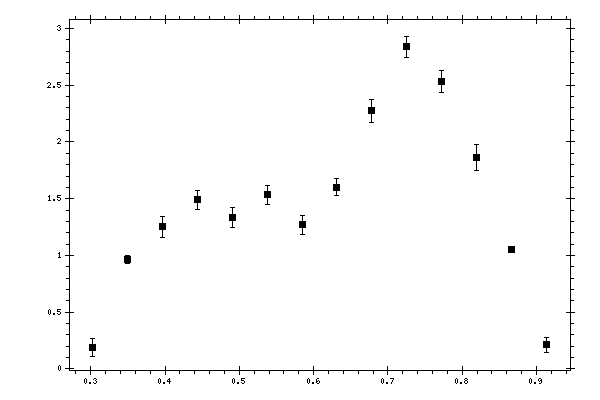

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.302625 | 0.18806 | 0.0799916 | 0.027388 |
| 0.349596 | 0.967696 | 0.0352633 | 0.08398165 |
| 0.396566 | 1.25291 | 0.0905325 | 0.11224229 |
| 0.443537 | 1.49018 | 0.0830129 | 0.12829498 |
| 0.490508 | 1.3351 | 0.0870493 | 0.12699828 |
| 0.537478 | 1.5332 | 0.0812312 | 0.14226751 |
| 0.584449 | 1.26898 | 0.081961 | 0.1061996 |
| 0.631419 | 1.60244 | 0.0729362 | 0.13023613 |
| 0.67839 | 2.27323 | 0.103645 | 0.16591133 |
| 0.72536 | 2.84059 | 0.0927187 | 0.20620529 |
| 0.772331 | 2.53055 | 0.0969942 | 0.20201244 |
| 0.819302 | 1.86607 | 0.112951 | 0.14935266 |
| 0.866272 | 1.05291 | 0.0277574 | 0.07900438 |
| 0.913243 | 0.211636 | 0.0619127 | 0.01723849 |
