Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

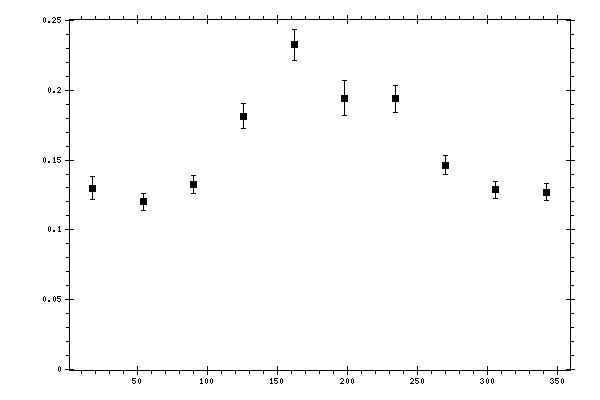

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.129934 | 0.00847474 | 0.01311831 |
| 54 | 0.119974 | 0.00621988 | 0.01032981 |
| 90 | 0.132254 | 0.00636765 | 0.01095161 |
| 126 | 0.181523 | 0.00879295 | 0.01465875 |
| 162 | 0.232712 | 0.0113431 | 0.01833304 |
| 198 | 0.194553 | 0.0127549 | 0.01564897 |
| 234 | 0.19406 | 0.00959487 | 0.01462491 |
| 270 | 0.146256 | 0.00681856 | 0.0120862 |
| 306 | 0.128565 | 0.00581771 | 0.01150743 |
| 342 | 0.126784 | 0.00606778 | 0.0110479 |
