Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

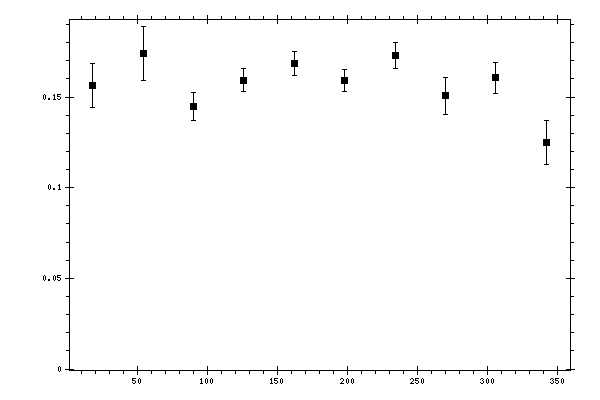

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.15612 | 0.0121385 | 0.01508038 |
| 54 | 0.173827 | 0.0148633 | 0.01626778 |
| 90 | 0.14474 | 0.00786583 | 0.01185132 |
| 126 | 0.159289 | 0.00628433 | 0.01205262 |
| 162 | 0.168305 | 0.00671043 | 0.01312868 |
| 198 | 0.159211 | 0.0061816 | 0.01226834 |
| 234 | 0.172728 | 0.00716415 | 0.01463784 |
| 270 | 0.15067 | 0.0102479 | 0.01139612 |
| 306 | 0.160625 | 0.00863572 | 0.01244482 |
| 342 | 0.125159 | 0.01215 | 0.01450196 |
