Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

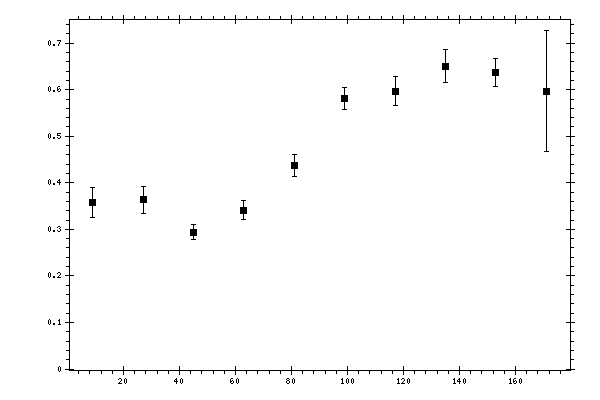

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.358011 | 0.0317992 | 0.04587954 |
| 27 | 0.363337 | 0.0284052 | 0.03921368 |
| 45 | 0.294081 | 0.0162386 | 0.0277081 |
| 63 | 0.341185 | 0.0207363 | 0.02892606 |
| 81 | 0.437257 | 0.0233753 | 0.03606485 |
| 99 | 0.581759 | 0.023833 | 0.04552366 |
| 117 | 0.597054 | 0.0305417 | 0.04744706 |
| 135 | 0.650498 | 0.0354449 | 0.06178706 |
| 153 | 0.636743 | 0.0308599 | 0.05283143 |
| 171 | 0.597001 | 0.130265 | 0.05274119 |
