Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

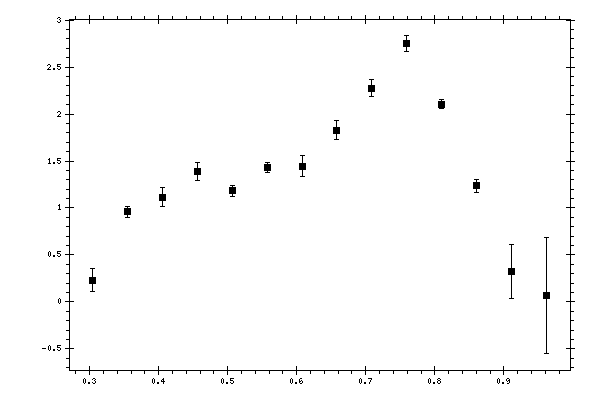

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.304411 | 0.231826 | 0.121546 | 0.02957416 |
| 0.354953 | 0.958852 | 0.0597649 | 0.09412371 |
| 0.405495 | 1.1145 | 0.102548 | 0.10146249 |
| 0.456037 | 1.38729 | 0.0919139 | 0.12112268 |
| 0.506579 | 1.18278 | 0.0571061 | 0.10381268 |
| 0.557121 | 1.43036 | 0.0519292 | 0.12120534 |
| 0.607663 | 1.44566 | 0.110891 | 0.12486734 |
| 0.658205 | 1.82905 | 0.0985864 | 0.15550303 |
| 0.708747 | 2.27577 | 0.0887622 | 0.20462751 |
| 0.759289 | 2.75173 | 0.0807214 | 0.24686807 |
| 0.809831 | 2.10685 | 0.0526108 | 0.16492668 |
| 0.860373 | 1.23794 | 0.0686345 | 0.09733366 |
| 0.910915 | 0.322169 | 0.287123 | 0.34580864 |
| 0.961457 | 0.0700975 | 0.615543 | 0.07538033 |
