Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

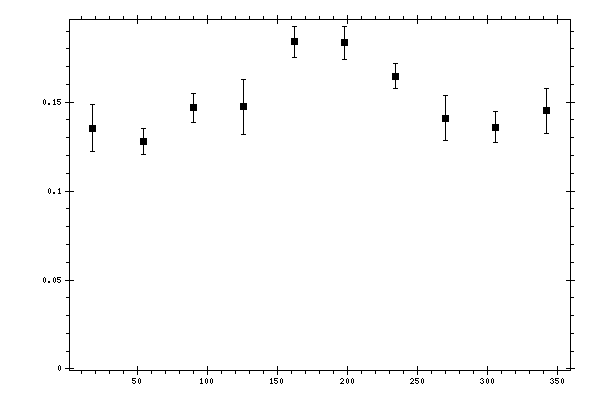

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.135273 | 0.0132129 | 0.01364369 |
| 54 | 0.12778 | 0.00725542 | 0.01047466 |
| 90 | 0.146796 | 0.00804751 | 0.01263429 |
| 126 | 0.147359 | 0.0155744 | 0.01356497 |
| 162 | 0.183916 | 0.00869026 | 0.01444943 |
| 198 | 0.183367 | 0.00911487 | 0.01540448 |
| 234 | 0.164717 | 0.00721909 | 0.01272532 |
| 270 | 0.141105 | 0.0123782 | 0.01256132 |
| 306 | 0.13605 | 0.00859637 | 0.01157119 |
| 342 | 0.145078 | 0.0125457 | 0.01978967 |
