Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

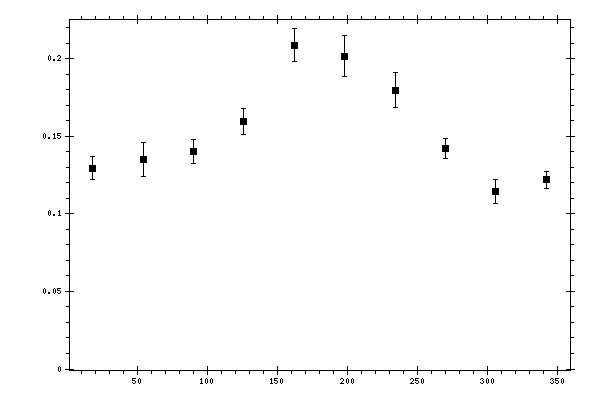

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.129472 | 0.00754629 | 0.01172361 |
| 54 | 0.134723 | 0.0108926 | 0.01279444 |
| 90 | 0.140185 | 0.00795968 | 0.01144088 |
| 126 | 0.159439 | 0.00831167 | 0.01325711 |
| 162 | 0.208593 | 0.0106368 | 0.01578873 |
| 198 | 0.201441 | 0.0132396 | 0.01610122 |
| 234 | 0.179694 | 0.0113809 | 0.01456525 |
| 270 | 0.141957 | 0.00641911 | 0.01093804 |
| 306 | 0.114586 | 0.00766433 | 0.01062824 |
| 342 | 0.121904 | 0.00549571 | 0.01109908 |
