Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

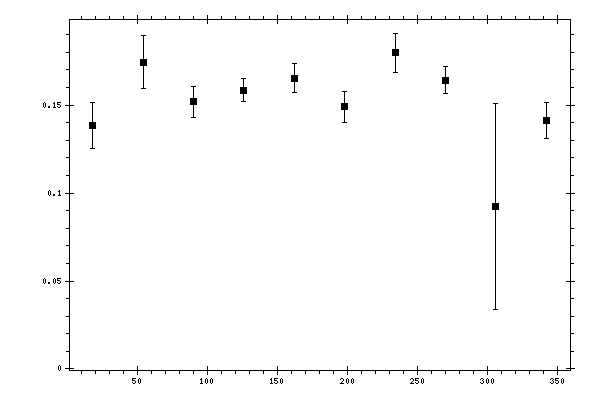

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.138449 | 0.0128911 | 0.01612889 |
| 54 | 0.174425 | 0.0150788 | 0.01861563 |
| 90 | 0.151738 | 0.00870606 | 0.01203862 |
| 126 | 0.158545 | 0.00674244 | 0.01227148 |
| 162 | 0.165319 | 0.00802591 | 0.01587982 |
| 198 | 0.148987 | 0.00876004 | 0.01223932 |
| 234 | 0.179616 | 0.0108883 | 0.01630015 |
| 270 | 0.164132 | 0.00755874 | 0.01226578 |
| 306 | 0.0925065 | 0.0584685 | 0.03557664 |
| 342 | 0.141228 | 0.0104169 | 0.01447501 |
