Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

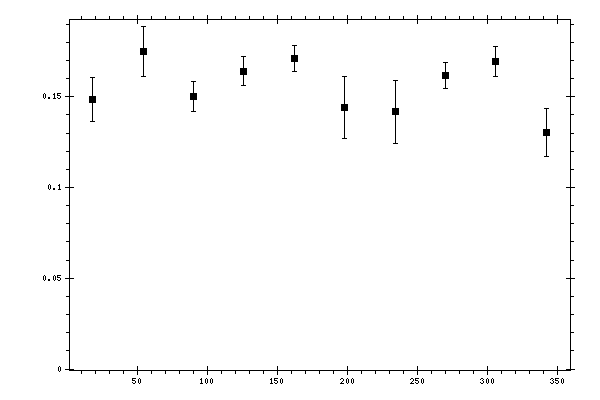

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.148691 | 0.0121353 | 0.01434286 |
| 54 | 0.174954 | 0.0137361 | 0.01627494 |
| 90 | 0.150273 | 0.00814167 | 0.01113086 |
| 126 | 0.16413 | 0.00791781 | 0.01243899 |
| 162 | 0.171076 | 0.00716291 | 0.01228419 |
| 198 | 0.143852 | 0.0170448 | 0.01320973 |
| 234 | 0.141692 | 0.0173816 | 0.01151378 |
| 270 | 0.161472 | 0.00716329 | 0.01167123 |
| 306 | 0.169413 | 0.00801064 | 0.01305831 |
| 342 | 0.130371 | 0.0133399 | 0.01299692 |
