Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

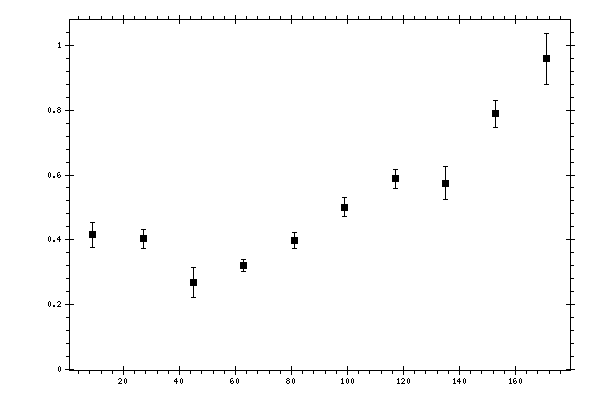

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.415716 | 0.0390087 | 0.04886528 |
| 27 | 0.402985 | 0.0288307 | 0.04351107 |
| 45 | 0.267281 | 0.0474528 | 0.02972401 |
| 63 | 0.319875 | 0.0175279 | 0.02925213 |
| 81 | 0.397641 | 0.0254618 | 0.0377677 |
| 99 | 0.500808 | 0.0283109 | 0.03747266 |
| 117 | 0.589033 | 0.0297072 | 0.04451616 |
| 135 | 0.575219 | 0.0499924 | 0.04523757 |
| 153 | 0.790068 | 0.0416719 | 0.05750624 |
| 171 | 0.959298 | 0.0795109 | 0.0753027 |
