Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

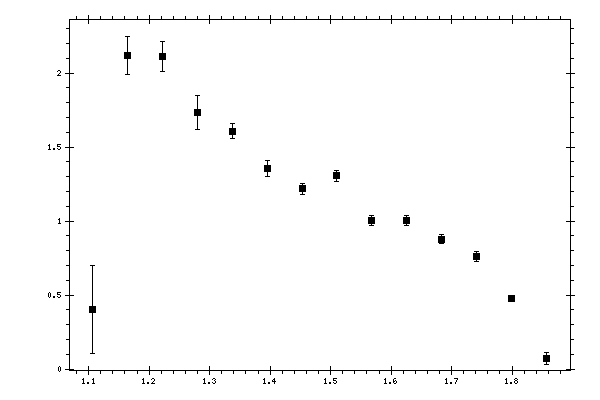

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10668 | 0.399262 | 0.297146 | 0.1143139 |
| 1.16437 | 2.1188 | 0.128989 | 0.26995569 |
| 1.22205 | 2.11187 | 0.102794 | 0.18828347 |
| 1.27974 | 1.73265 | 0.113487 | 0.15720807 |
| 1.33742 | 1.60602 | 0.0505833 | 0.12419585 |
| 1.39511 | 1.35489 | 0.055072 | 0.10495869 |
| 1.45279 | 1.21662 | 0.0400047 | 0.09769049 |
| 1.51048 | 1.30528 | 0.0386221 | 0.10479333 |
| 1.56816 | 1.00201 | 0.0336727 | 0.07815326 |
| 1.62585 | 1.0022 | 0.0336696 | 0.07816487 |
| 1.68353 | 0.87829 | 0.0302536 | 0.06636005 |
| 1.74122 | 0.760078 | 0.0325212 | 0.05743272 |
| 1.7989 | 0.477843 | 0.0159735 | 0.0409113 |
| 1.85659 | 0.0732559 | 0.0407964 | 0.00642642 |
