Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

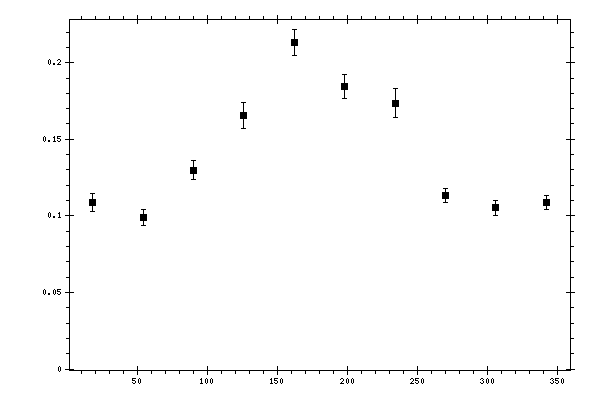

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.108541 | 0.00587057 | 0.0102573 |
| 54 | 0.098913 | 0.00498636 | 0.00937595 |
| 90 | 0.129923 | 0.00613329 | 0.01010034 |
| 126 | 0.165661 | 0.00830742 | 0.01255786 |
| 162 | 0.213147 | 0.0083821 | 0.01686063 |
| 198 | 0.184512 | 0.00802146 | 0.01495713 |
| 234 | 0.17369 | 0.00962113 | 0.01404379 |
| 270 | 0.11344 | 0.00468316 | 0.00918832 |
| 306 | 0.105187 | 0.00483609 | 0.00895532 |
| 342 | 0.108715 | 0.00483911 | 0.0104871 |
