Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

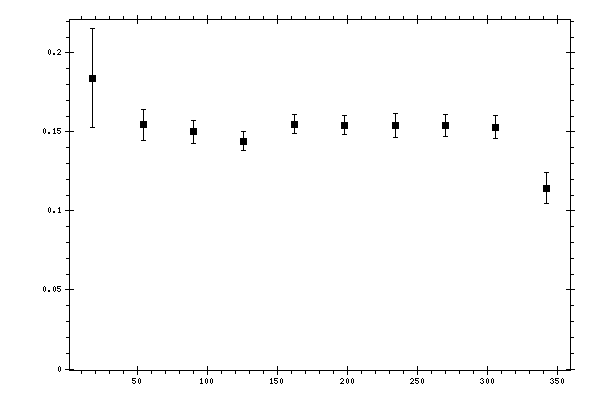

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.183989 | 0.0313157 | 0.02981835 |
| 54 | 0.154401 | 0.00967937 | 0.0129569 |
| 90 | 0.150152 | 0.00718449 | 0.01118868 |
| 126 | 0.144264 | 0.00608873 | 0.01309022 |
| 162 | 0.155014 | 0.00586791 | 0.01203037 |
| 198 | 0.154394 | 0.00616387 | 0.0123585 |
| 234 | 0.154186 | 0.00775756 | 0.01193608 |
| 270 | 0.15413 | 0.00701904 | 0.0113954 |
| 306 | 0.152881 | 0.00731065 | 0.01359011 |
| 342 | 0.114337 | 0.00970018 | 0.01596748 |
