Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

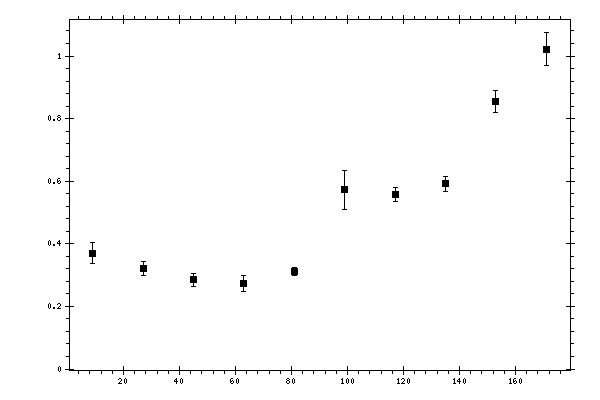

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.369217 | 0.0335582 | 0.04863346 |
| 27 | 0.321078 | 0.0212883 | 0.0339527 |
| 45 | 0.284493 | 0.021628 | 0.03089738 |
| 63 | 0.272787 | 0.0246123 | 0.02365911 |
| 81 | 0.313037 | 0.0128366 | 0.02941667 |
| 99 | 0.572717 | 0.0621785 | 0.07082131 |
| 117 | 0.557756 | 0.0230404 | 0.04292906 |
| 135 | 0.591578 | 0.0238782 | 0.04945087 |
| 153 | 0.853397 | 0.0351383 | 0.0671423 |
| 171 | 1.02213 | 0.051687 | 0.0904555 |
