Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

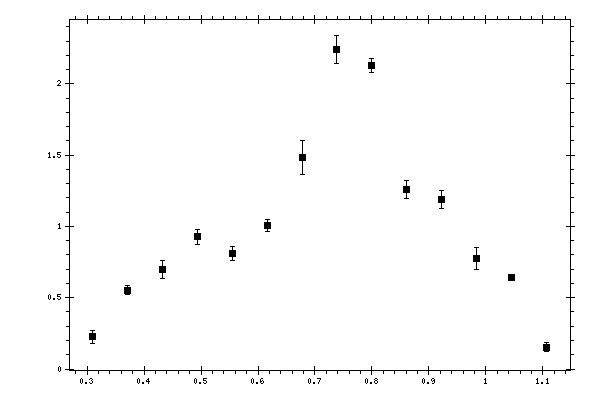

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.309768 | 0.224715 | 0.0479322 | 0.02521514 |
| 0.371024 | 0.551636 | 0.0305927 | 0.04865915 |
| 0.432281 | 0.697567 | 0.061608 | 0.10176729 |
| 0.493537 | 0.925838 | 0.0534765 | 0.13193769 |
| 0.554793 | 0.808178 | 0.0480989 | 0.07732124 |
| 0.61605 | 1.0077 | 0.0430747 | 0.09329384 |
| 0.677306 | 1.48293 | 0.118012 | 0.1267924 |
| 0.738562 | 2.24113 | 0.0959962 | 0.18850167 |
| 0.799818 | 2.12725 | 0.0480624 | 0.15912744 |
| 0.861075 | 1.25954 | 0.062461 | 0.09580526 |
| 0.922331 | 1.18919 | 0.0627249 | 0.10565205 |
| 0.983587 | 0.777017 | 0.077598 | 0.06937086 |
| 1.04484 | 0.639219 | 0.0143318 | 0.05306767 |
| 1.1061 | 0.153523 | 0.0292443 | 0.01343297 |
