Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

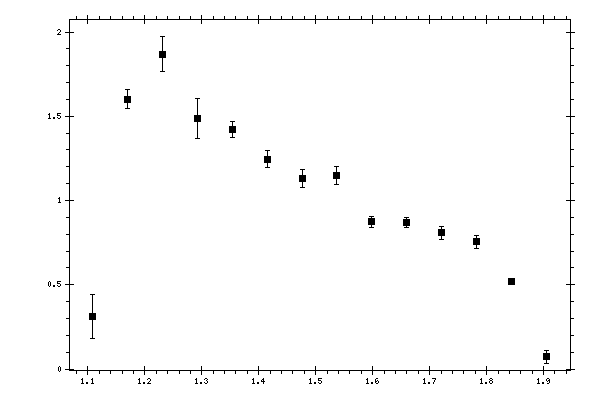

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 0.313358 | 0.131545 | 0.10635588 |
| 1.16973 | 1.6019 | 0.0581803 | 0.18402368 |
| 1.23098 | 1.86899 | 0.105489 | 0.1844698 |
| 1.29224 | 1.48492 | 0.118348 | 0.14858442 |
| 1.3535 | 1.42264 | 0.0476101 | 0.11391562 |
| 1.41475 | 1.24466 | 0.0509004 | 0.09975074 |
| 1.47601 | 1.13063 | 0.0538563 | 0.09657589 |
| 1.53726 | 1.15149 | 0.0533663 | 0.09834952 |
| 1.59852 | 0.873076 | 0.0319449 | 0.06555256 |
| 1.65978 | 0.869875 | 0.0320037 | 0.06531242 |
| 1.72103 | 0.807604 | 0.0370347 | 0.05937117 |
| 1.78229 | 0.755826 | 0.0382822 | 0.05556564 |
| 1.84355 | 0.51756 | 0.0151302 | 0.03959955 |
| 1.9048 | 0.0718629 | 0.0406044 | 0.00560701 |
