Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

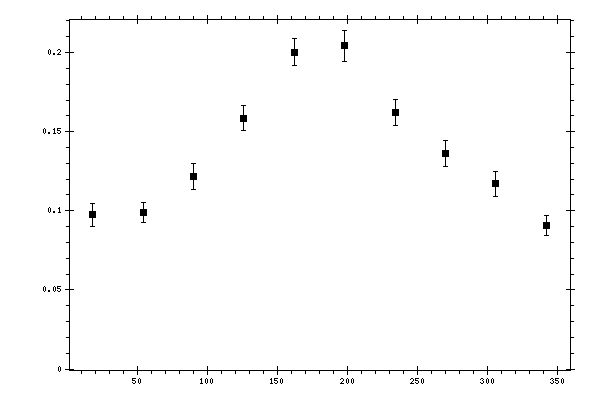

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0973881 | 0.00714356 | 0.01229645 |
| 54 | 0.0988705 | 0.00634765 | 0.0095017 |
| 90 | 0.121667 | 0.00796989 | 0.00996629 |
| 126 | 0.158545 | 0.00781289 | 0.01392825 |
| 162 | 0.200196 | 0.0084667 | 0.01470171 |
| 198 | 0.204317 | 0.00979882 | 0.01564051 |
| 234 | 0.161844 | 0.0082419 | 0.01182245 |
| 270 | 0.136188 | 0.00840588 | 0.01061915 |
| 306 | 0.117078 | 0.00780355 | 0.00989095 |
| 342 | 0.0909332 | 0.00638173 | 0.01010405 |
