Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 5 — 6 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

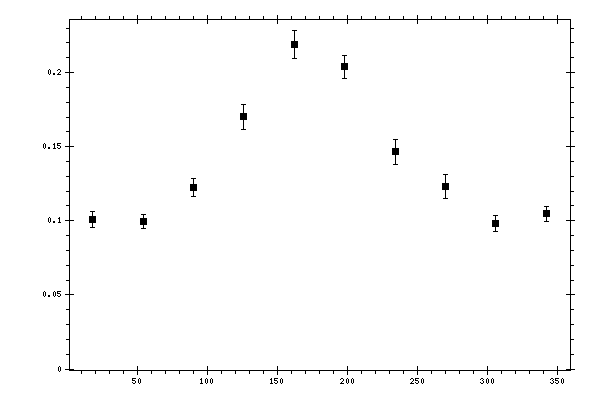

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.100998 | 0.00538246 | 0.00940272 |
| 54 | 0.0992514 | 0.00477118 | 0.00888921 |
| 90 | 0.122688 | 0.00603348 | 0.00954047 |
| 126 | 0.170073 | 0.00828574 | 0.01269583 |
| 162 | 0.219003 | 0.00971222 | 0.01615256 |
| 198 | 0.203806 | 0.00807726 | 0.01499832 |
| 234 | 0.146683 | 0.0084732 | 0.01194993 |
| 270 | 0.123144 | 0.00793044 | 0.01014116 |
| 306 | 0.0981157 | 0.00532943 | 0.00890885 |
| 342 | 0.104768 | 0.00496215 | 0.01131134 |
