Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

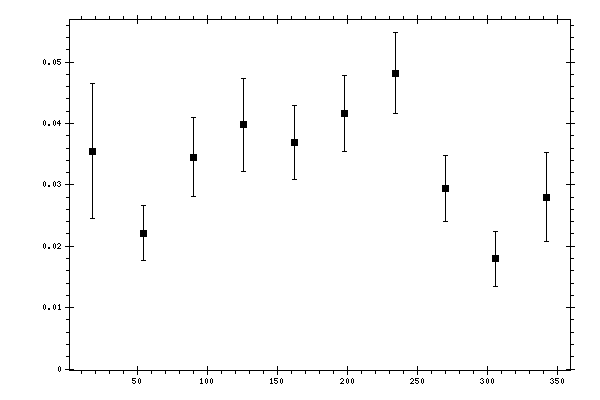

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0354712 | 0.0110322 | 0.00630564 |
| 54 | 0.0221527 | 0.00440461 | 0.00285349 |
| 90 | 0.0345184 | 0.00640913 | 0.00287672 |
| 126 | 0.0397951 | 0.00760902 | 0.00444822 |
| 162 | 0.0368638 | 0.00601415 | 0.00288196 |
| 198 | 0.041616 | 0.00624523 | 0.00481458 |
| 234 | 0.0481967 | 0.00659677 | 0.00489196 |
| 270 | 0.0294405 | 0.00535595 | 0.0027888 |
| 306 | 0.0179711 | 0.00451208 | 0.00291433 |
| 342 | 0.0279647 | 0.00723964 | 0.00599996 |
