Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

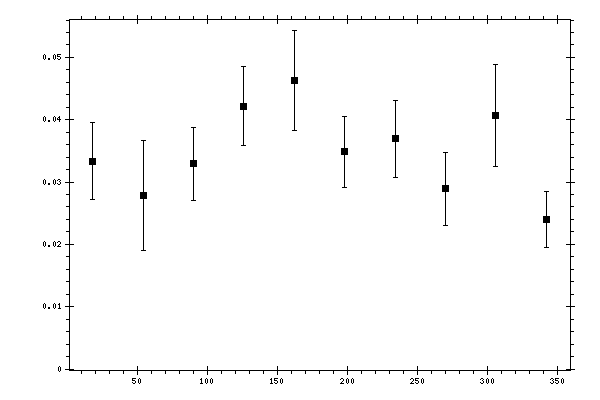

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0333712 | 0.0062249 | 0.02107964 |
| 54 | 0.0278193 | 0.00880095 | 0.0032834 |
| 90 | 0.0329236 | 0.00582313 | 0.00337568 |
| 126 | 0.0421984 | 0.00627712 | 0.00351471 |
| 162 | 0.046226 | 0.00801696 | 0.00502456 |
| 198 | 0.0348495 | 0.00571365 | 0.00371149 |
| 234 | 0.0369341 | 0.00623198 | 0.00390997 |
| 270 | 0.0289243 | 0.00584165 | 0.00327252 |
| 306 | 0.0406608 | 0.0081635 | 0.00564024 |
| 342 | 0.0240119 | 0.00447526 | 0.00676805 |
