Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

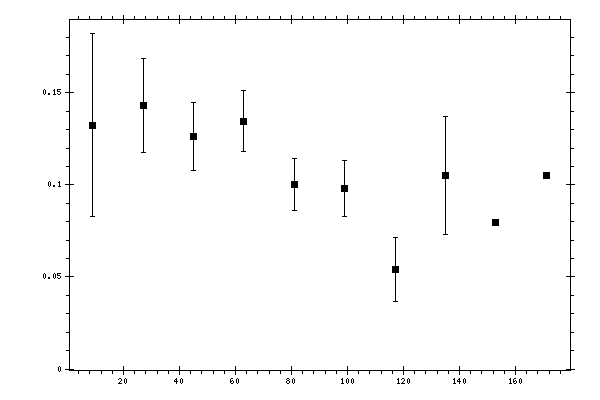

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.132477 | 0.0497993 | 0.02822552 |
| 27 | 0.143197 | 0.0255531 | 0.01508011 |
| 45 | 0.126254 | 0.0183433 | 0.01023573 |
| 63 | 0.134666 | 0.0165989 | 0.01213252 |
| 81 | 0.1002 | 0.0139399 | 0.00978145 |
| 99 | 0.0980684 | 0.0153622 | 0.01614544 |
| 117 | 0.0542704 | 0.0174125 | 0.01527165 |
| 135 | 0.105204 | 0.0321119 | 0.03517879 |
| 153 | 0.0796972 | 0.00084491 | 0.04504667 |
| 171 | 0.104828 | 8.733e-05 | 0.05558129 |
