Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

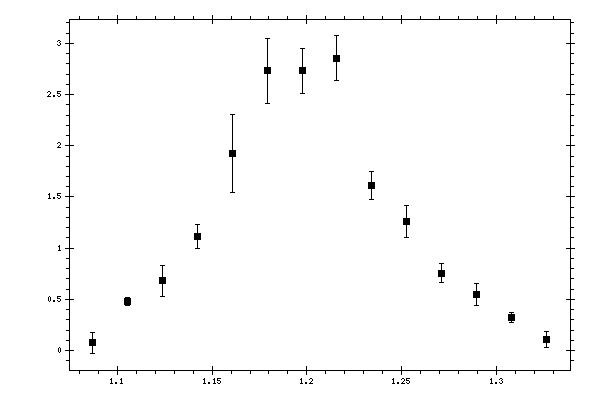

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.0772616 | 0.101562 | 0.04382845 |
| 1.10544 | 0.479314 | 0.0407759 | 0.06386484 |
| 1.12384 | 0.682499 | 0.152253 | 0.10846883 |
| 1.14224 | 1.11542 | 0.119096 | 0.14513518 |
| 1.16064 | 1.92514 | 0.378816 | 0.18305458 |
| 1.17904 | 2.73387 | 0.317885 | 0.24707525 |
| 1.19744 | 2.73084 | 0.221399 | 0.25559788 |
| 1.21584 | 2.85626 | 0.216483 | 0.26620362 |
| 1.23423 | 1.61306 | 0.137897 | 0.14160903 |
| 1.25263 | 1.26194 | 0.155905 | 0.11810691 |
| 1.27103 | 0.757385 | 0.0907286 | 0.07973698 |
| 1.28943 | 0.550441 | 0.106426 | 0.06335929 |
| 1.30783 | 0.324184 | 0.0459031 | 0.03733358 |
| 1.32623 | 0.110006 | 0.0788005 | 0.01914334 |
