Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

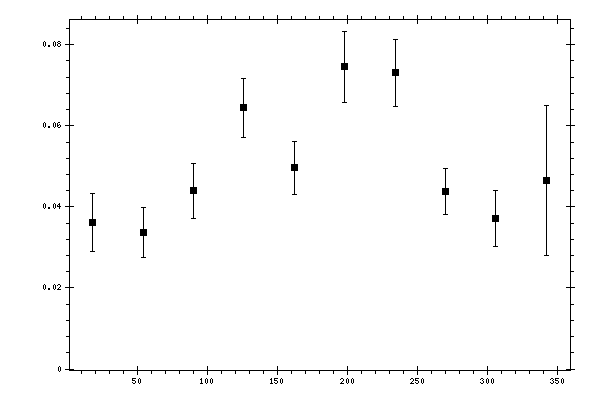

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0361841 | 0.00711882 | 0.00808002 |
| 54 | 0.0337595 | 0.00620533 | 0.00407269 |
| 90 | 0.0439241 | 0.00684453 | 0.0038135 |
| 126 | 0.0644127 | 0.00731132 | 0.00680275 |
| 162 | 0.0496475 | 0.00656395 | 0.00409821 |
| 198 | 0.0745656 | 0.00874782 | 0.00654307 |
| 234 | 0.0730643 | 0.00818723 | 0.00762607 |
| 270 | 0.0438435 | 0.00569764 | 0.00348113 |
| 306 | 0.0371261 | 0.00702364 | 0.0041697 |
| 342 | 0.0464535 | 0.0184991 | 0.00958503 |
