Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

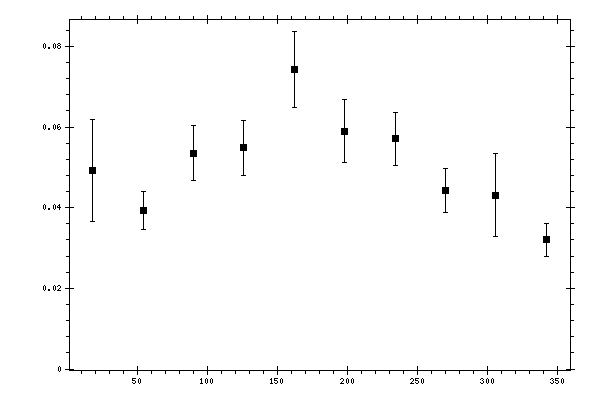

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0491746 | 0.0126416 | 0.00566083 |
| 54 | 0.0392731 | 0.00478966 | 0.00448561 |
| 90 | 0.053513 | 0.0068258 | 0.00610733 |
| 126 | 0.0548642 | 0.00676505 | 0.00651267 |
| 162 | 0.0743519 | 0.00940095 | 0.00817218 |
| 198 | 0.0589861 | 0.00774405 | 0.0072804 |
| 234 | 0.0570732 | 0.00653279 | 0.00641123 |
| 270 | 0.0442305 | 0.0054283 | 0.00518798 |
| 306 | 0.043101 | 0.0103467 | 0.00771207 |
| 342 | 0.0320269 | 0.00414553 | 0.00440652 |
