Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

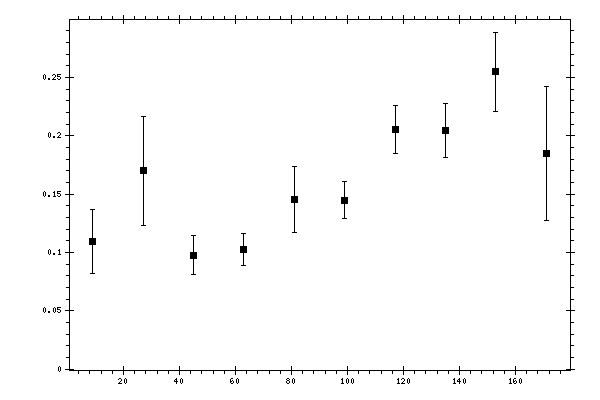

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.109147 | 0.0276542 | 0.0290497 |
| 27 | 0.170031 | 0.0467251 | 0.03581046 |
| 45 | 0.0976934 | 0.0165235 | 0.01995024 |
| 63 | 0.102329 | 0.0135979 | 0.01619212 |
| 81 | 0.145416 | 0.0284663 | 0.01657951 |
| 99 | 0.144644 | 0.0156596 | 0.01906825 |
| 117 | 0.205703 | 0.0205712 | 0.01701717 |
| 135 | 0.204415 | 0.0234879 | 0.01914745 |
| 153 | 0.254861 | 0.0339301 | 0.02438601 |
| 171 | 0.184636 | 0.0576355 | 0.01936993 |
