Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

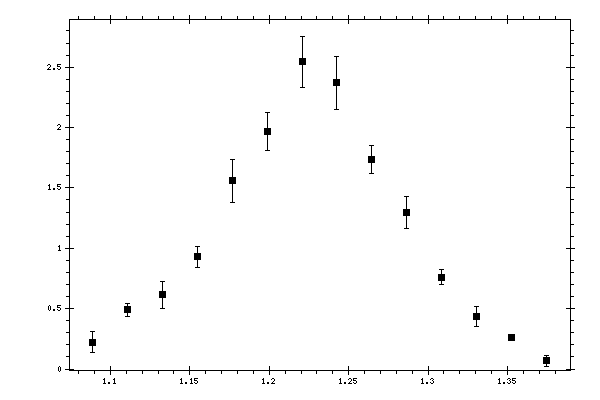

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.223495 | 0.0830766 | 0.02765635 |
| 1.1108 | 0.489863 | 0.0561145 | 0.05832322 |
| 1.13277 | 0.614356 | 0.109292 | 0.07678545 |
| 1.15474 | 0.929549 | 0.0888513 | 0.11028062 |
| 1.17671 | 1.55749 | 0.180133 | 0.15793634 |
| 1.19868 | 1.96712 | 0.160285 | 0.19070314 |
| 1.22065 | 2.54366 | 0.210666 | 0.25579911 |
| 1.24262 | 2.37013 | 0.218241 | 0.24092459 |
| 1.26459 | 1.7343 | 0.114931 | 0.19390368 |
| 1.28656 | 1.29738 | 0.132882 | 0.15854137 |
| 1.30853 | 0.758975 | 0.061616 | 0.1305021 |
| 1.3305 | 0.434539 | 0.0814316 | 0.09639306 |
| 1.35247 | 0.256874 | 0.0234453 | 0.06072995 |
| 1.37444 | 0.0673502 | 0.0457874 | 0.03634662 |
