Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

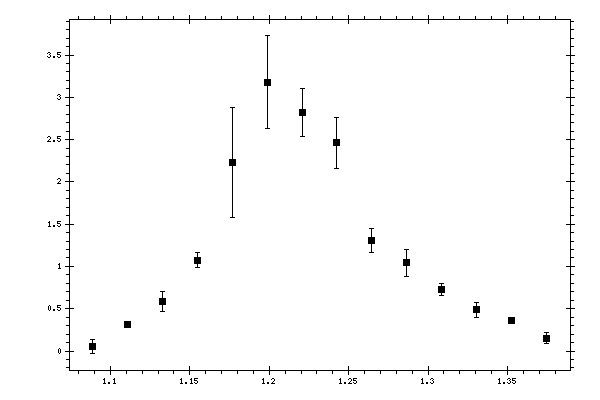

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.0548013 | 0.0799431 | 0.03071117 |
| 1.1108 | 0.315108 | 0.0333386 | 0.05427951 |
| 1.13277 | 0.581249 | 0.119532 | 0.0946134 |
| 1.15474 | 1.07548 | 0.087875 | 0.14327106 |
| 1.17671 | 2.23129 | 0.652236 | 0.34293577 |
| 1.19868 | 3.18066 | 0.546291 | 0.4832135 |
| 1.22065 | 2.82488 | 0.282475 | 0.32371676 |
| 1.24262 | 2.46454 | 0.302422 | 0.28368711 |
| 1.26459 | 1.30361 | 0.140529 | 0.15502627 |
| 1.28656 | 1.04129 | 0.157237 | 0.12557811 |
| 1.30853 | 0.723735 | 0.0724487 | 0.07478412 |
| 1.3305 | 0.485906 | 0.0884186 | 0.05164704 |
| 1.35247 | 0.360933 | 0.0411254 | 0.04051392 |
| 1.37444 | 0.149331 | 0.0639364 | 0.0181249 |
